Features

Quick accurate analysis for checking balance and alignment of a rotating object.
Large LCD display
Statistics: Mean, Max, MIN, No. of Measurements and Std deviation
Inch/Metric Conversion with the push of a button
Max Hold Function
Regulated Output(AC output 2.0v peak full scale

Multi-functional vibration meter is capable of measuring Velocity, Acceleration, Displacement and RPM Frequency.

Phase II now brings Vibration meters into the fold of our instrumentation line with the introduction of the State-of-the-art DVM-1000 Vibration Meter.

The multi-fucntional vibration meter will measure Velocity, Acceleration, Displacement, and RPM. Full frequency ranges are utilized for broad detection abilities.

Feature laden, the DVM-1000 Vibration Meter doesn’t pull any punches, offering statistics, inch/metric conversion, hold function, and more!!

Specifications:

Acceleration	Peak Value: 0.30 – 200 m/s² or 0.30-656 ft/s²	Frequency Range: 10Hz-1KHz Frequency Range: 10Hz-10KHz
Velocity(RMS)	RMS: 0.30-400 (mm/s) or 0.30 -16.0 inch/s	Frequency Range: 10Hz-1KHz
Displacement	Peak to Peak: 0.003 – 4.00(mm) or 0.003-160mil	Frequency Range: 10Hz-500Hz
RPM (revolution)	60-999,990 r/min (readings should be multiplied by 10 if the display is set for “10”
Frequency	1 – 20KHz
Accuracy	+/-5% +2 digits
Operating Temperature/Humidity	0-50°C / below 90%RH
Operating Output	AC output 2.0V peak full scale	Load resistance: above 10k
Power Supply	4-AAA Batteries
Dimensions	124 x 62 x 30mm (4.9 x 2.4 x 1.2:)
Weight	120g (not including batteries)

Vibration measurement notations:

Before taking a vibration measurement, you need to attach a sensor that can detect vibration behavior to the machine that is being measured. Various types of vibration sensors are available, but a type called accelerometer is normally used as it offers advantages over other sensors. An accelerometer is a sensor that produces an electrical signal that is proportional to the acceleration of the vibrating component to which the accelerometer is attached.

What is the acceleration of a vibrating component? It is a measure of how quickly the velocity of the component is changing.

The acceleration signal produced by the accelerometer is passed on to the instrument that in turn converts the signal to a velocity signal. Depending on the user’s choice, the signal can be displayed as either a velocity waveform or a velocity spectrum. A velocity spectrum is derived from a velocity waveform by means of a mathematical calculation known as the Fast Fourier Transform or FFT.

Most machines involve rotary mechanisms. Motors, pumps, compressors, fans, belt conveyors, gearboxes, all involve rotary mechanisms and are frequently used in machines.

Most rotary mechanisms in turn have bearings that support the weight of rotating parts and bear the forces associated with rotary motion and vibration. In general, large amounts of force are borne by bearings. It is not surprising that bearings are often the place where damage occurs and where symptoms first develop.

Vibration measurements are thus usually taken at the bearings of machines, with accelerometers mounted at or near the bearings.

Since conclusions regarding machine condition – and hence whether or not money and human safety are risked – depend on the accuracy of measurements, we must be very careful how measurements are taken. It is important to always remember that the way in which we mount the accelerometer very much determines the accuracy of measurements.

How should accelerometers be mounted to ensure measurements are accurate and how can we do so safely? Here are some guidelines:

Mount as Close as Possible to the Bearing

Imagine a doctor who listened to your heart through thick clothing and placed the stethoscope closer to your kidney than to your heart. You would likely doubt his diagnosis as he would be basing it on sounds distorted by undue obstruction and noise from other organs.

For the accelerometer to detect true vibration behavior, it needs to undergo exactly the same vibratory movement as the vibrating component. An accelerometer must therefore be attached firmly to the vibrating component so that it does not rock or move independently of the component. A loosely mounted accelerometer produces signals distorted by its own independent movements and therefore gives the wrong message.

What are measurement parameters?

Measurement parameters are the details that specify how a measurement is to be taken. By specifying measurement parameters, we specify how data is to be collected and processed before it is presented to us. Before taking a vibration measurement we need to specify what parameters will be used.

The parameters for vibration measurement may be likened to the ‘what and how’ details that a doctor must specify before a medical test is performed.

Filters

Vibration Meters

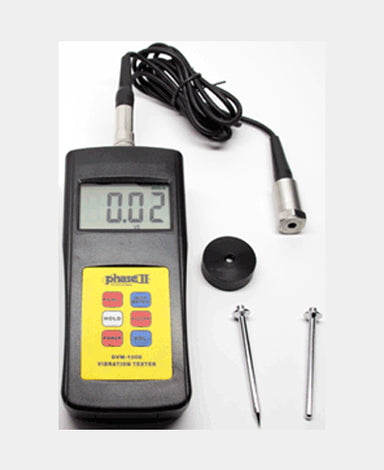

DVM-1000 Vibration Meter Gauge
