SIUI Smartor

SIUI Smartor

by Stellar Prime Industrial
$4,800.00

Notify me when back in stock

Overview

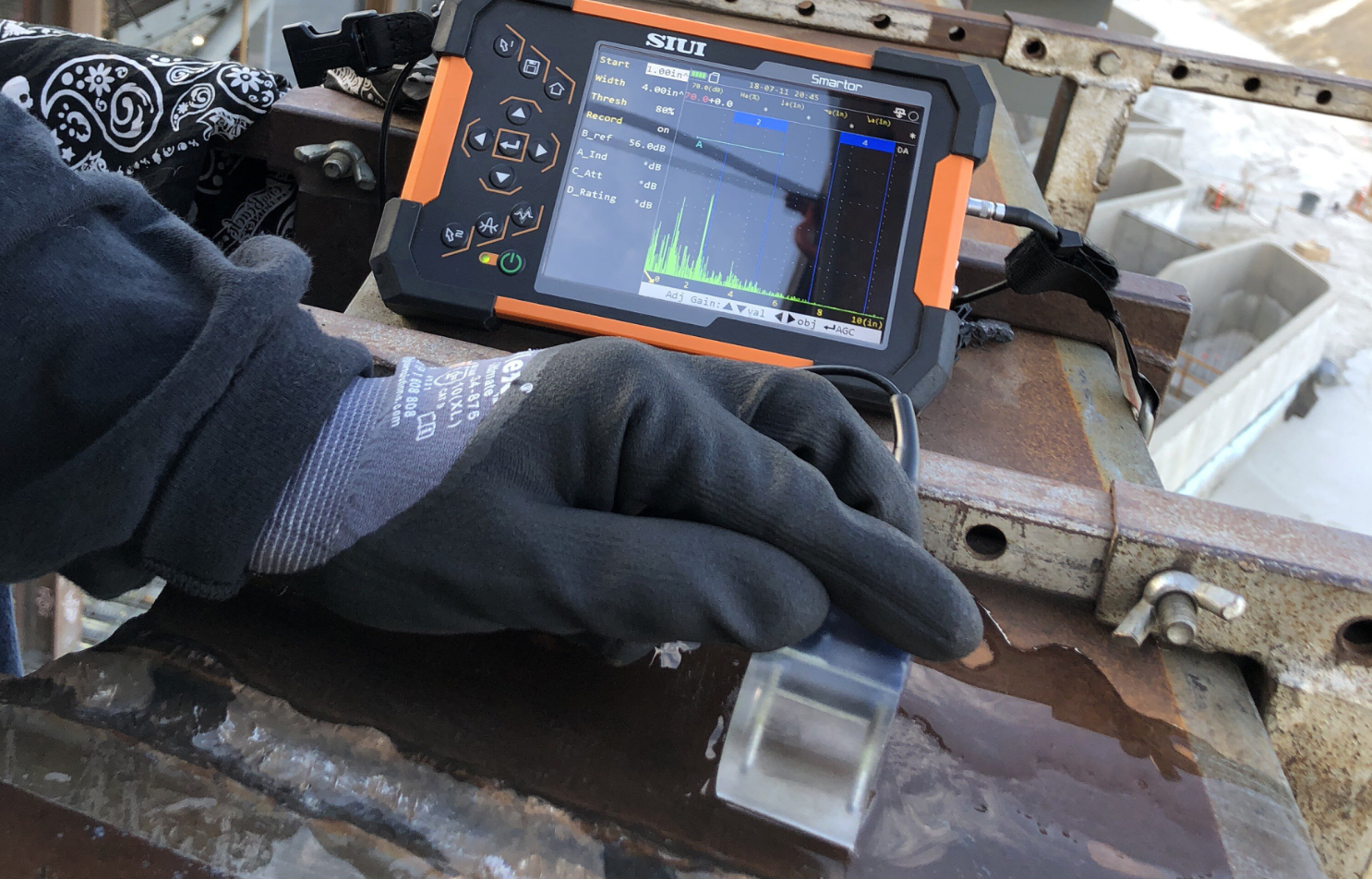

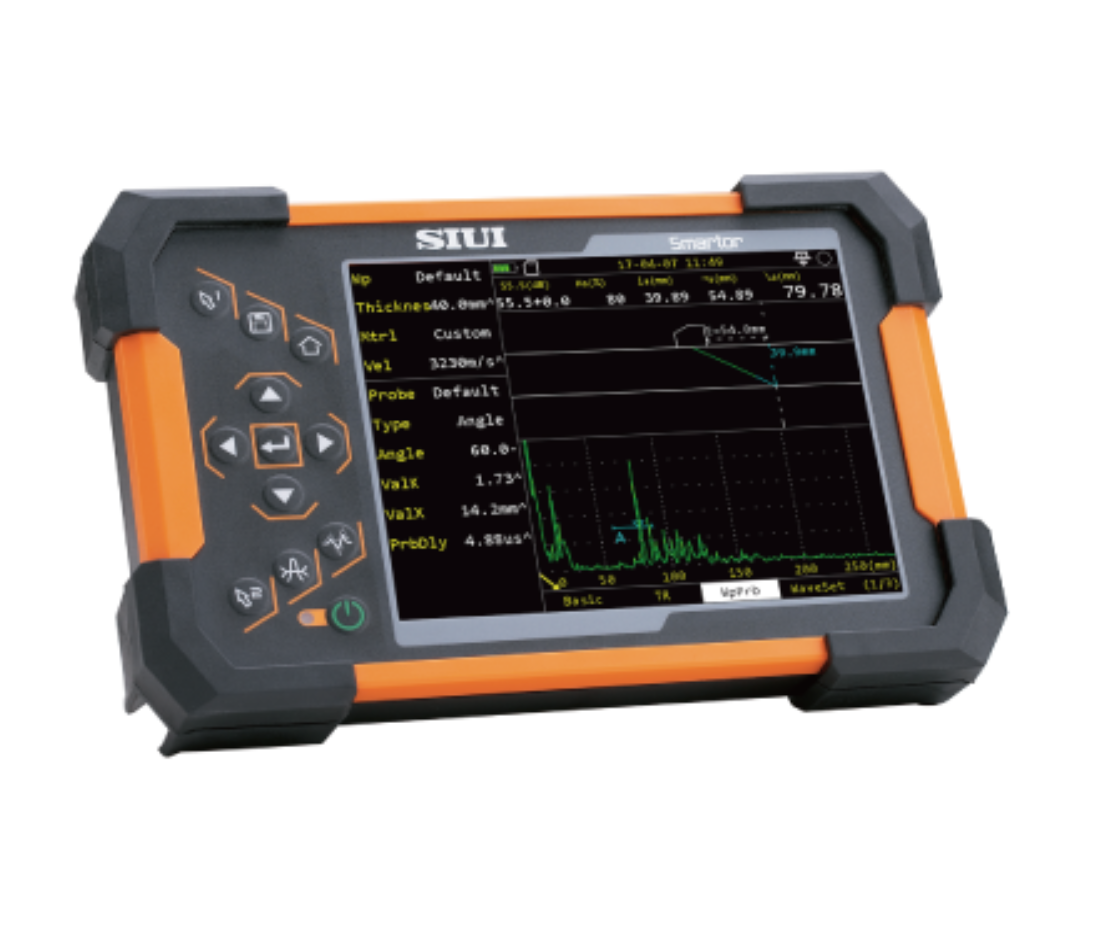

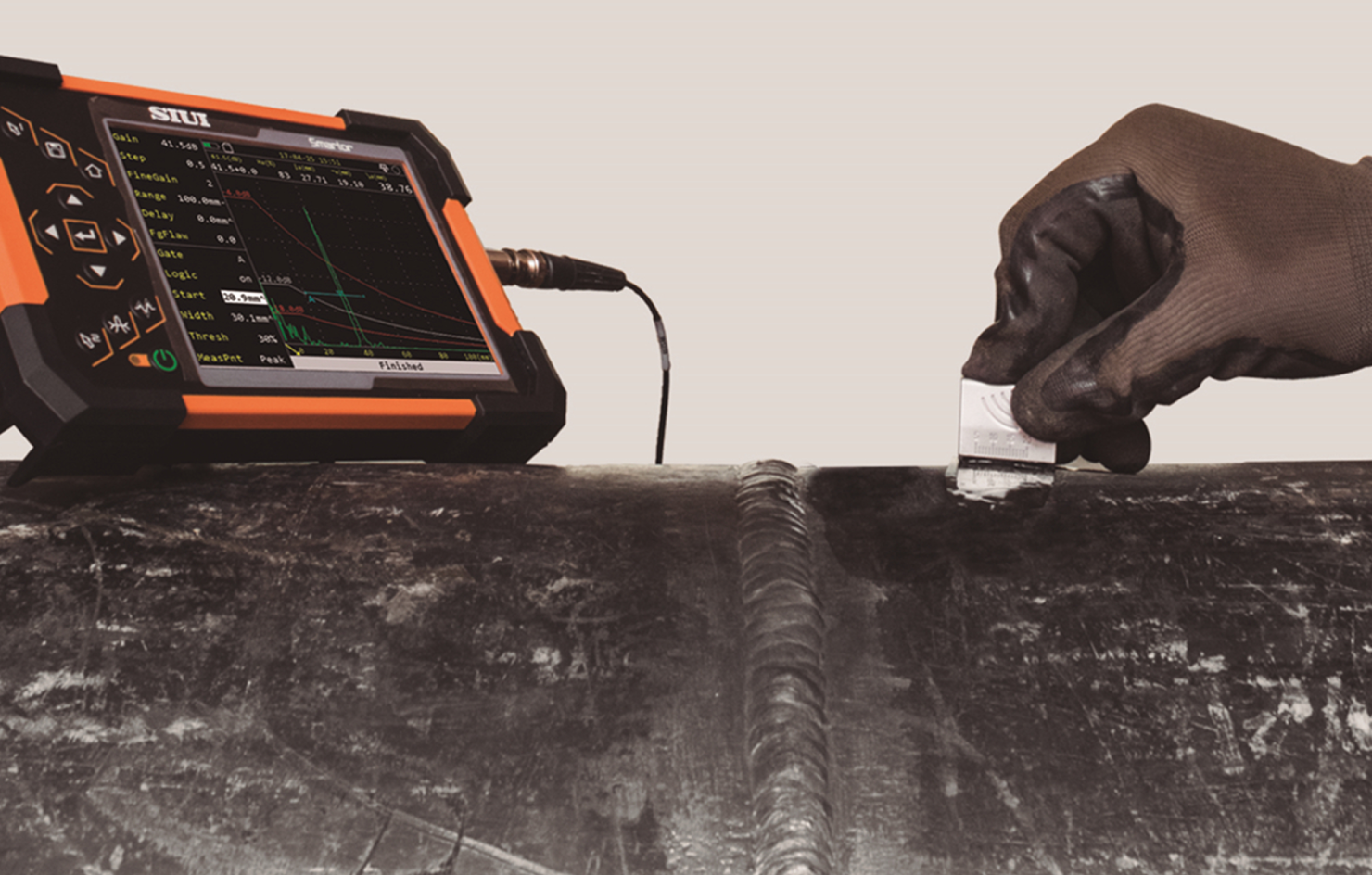

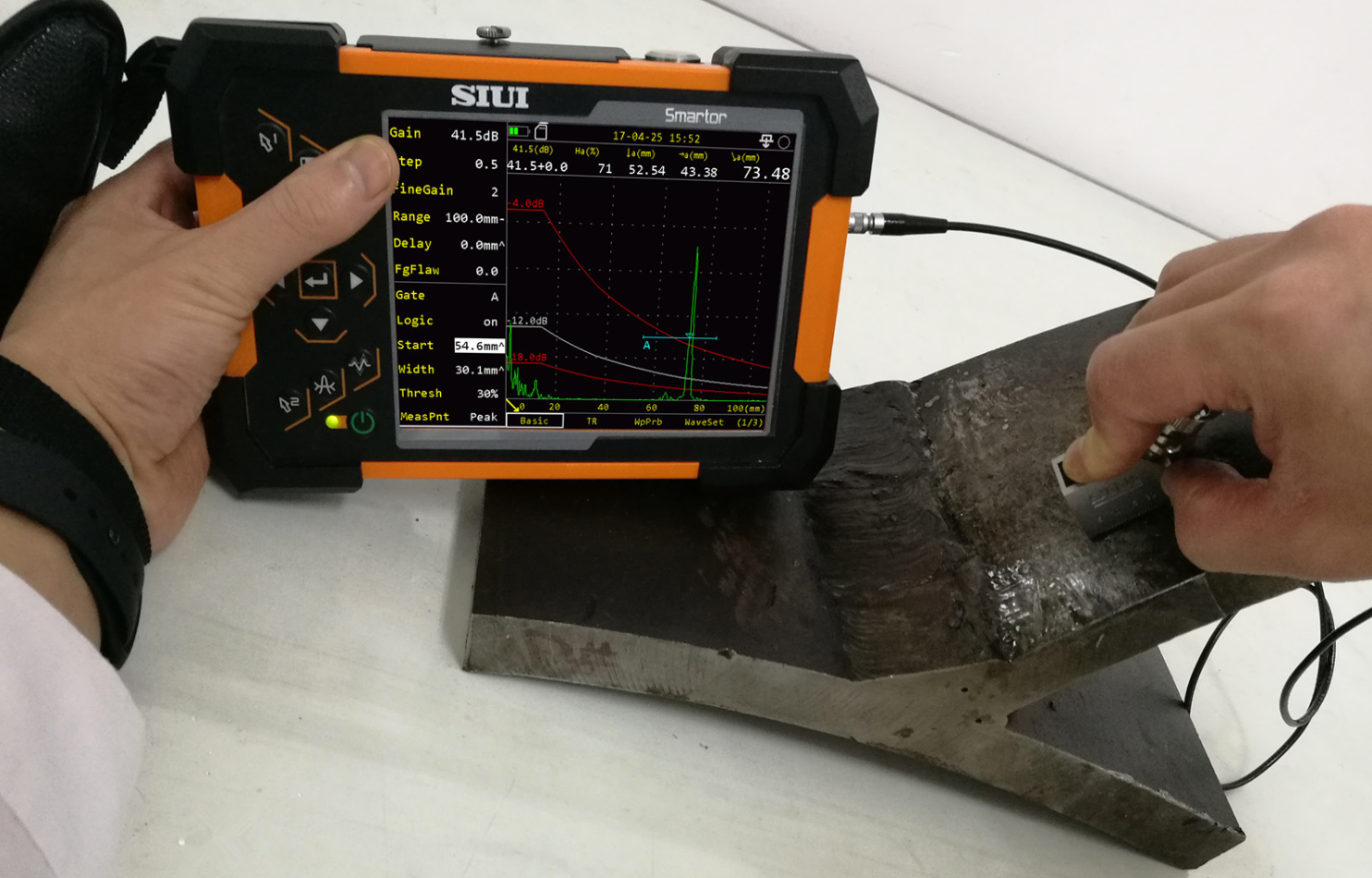

The SIUI Smartor digital ultrasonic flaw detector and thickness gauge is an upgradable unit that offers one hand operation, flat weld simulation and a smart test wizard. This combination UT and TG detector has up to 14 types of weld simulation, with dynamic beam tracking to visualize the flaw location. Perfect for flat and angle weld testing, thickness measurements on pipes and step blocks, and more. Fully featured unit that is lightweight, has a high IP rating of IP66, and is EN12668-1:2010 (for UT) and EN15317-2007 (for TG) compliant.



Features

  • High IP Rating of IP66
  • Compact Size - 8" x 5" x 2" (198 x 128 x 50mm) (WxHxD)
  • Lightweight at 2 lbs. (0.9kg), including battery
  • 5.7" LCD with high resolution, 640 x 480 pixels
  • Adjustable pulse width, negative square wave transmission is up to 350V
  • Operating Frequency Range of 0.5 - 20MHz, multiple steps of wide broadband and narrow-band for selection
  • Easy operation with only a few buttons, well-defined intuitive interface, right-hand and left-hand operation, and outdoor mode
  • Multiple conventional UT functions:
    • Weld, plate and forging test wizards are available, which can guide users to perform setup easily and improve inspection speed.
    • Peak memory, DAC curve, AGC (auto gain control) and video recording allows for convenient and efficient flaw detection.
    • Optional functions such as B-Scan, TCG, probe spectral analysis, CSC (curved surface correction), weld simulation and crack height measurement are available upon request.
    • Featured with AWS D1.1/D1.5 and API 5UE evaluation standards
  • Multiple thickness measurement functions:
    • Standard A-Scan thickness measurements (through coating measurement, echo to echo mode)
    • Auto-search, velocity measurement, alarm and dataset management are available upon request.
    • Optional functions: coating thickness measurement, B-Scan, multi-layer measurement, V-PATH, TDG and temperature compensation.
  • System Ports - Encoder, VGA, standard SD card, USB



Specifications

Display Screen 5.7" high brightness TFT LCD, 640 x 480 pixels
Measuring Units Inch / mm
Peripheral Ports USB, SD card (16G) and VGA ports (sharing same mini HDMI with I/O signal port)
Languages English, German, Russian, Polish, Hungarian
Power Supply DC 12V (external power supply); 7.4V (battery)
Battery Operating Time ≥8h (under factory default mode)
Operating Temperature 14°F - 113°F (-10°C - 45°C)
Storage Temperature -4°F - 140°F (-20°C - 60°C)
IP Code IP66
Weight 2 lbs. (0.9kg) including battery
Dimensions 8" x 5" x 2" (198 x 128 x 50mm)
Encoder 1pc (4-core)
